WiFi 300Mbps Passive Optical Line Terminal High Performance

Name: WiFi 300Mbps Passive Optical Line Terminal High Performance
Brand: UBNT
Price: 1 USD

Best WiFi 300Mbps Passive Optical Line Terminal High Performance wholesale

Brand Name : UBNT

Model Number : UF-wifi

Place of Origin : Guangdong, China

MOQ : Negotiable

Price : Negotiable

Product name : UF-wifi

Dimensions : 126.34 x 126.09 x 31.65 mm

LAN : 10/100/1000 Mbps

Power Supply : 100-240VAC / 50-60 Hz Universal AC/DC 24V / 0.5A

Weight : 190 g (6.70 oz)

Supported Voltage Range : 20 to 28V

Wi-Fi : 300 Mbps

Max. Power Consumption : 7W

Warranty : 1 Year

Contact Now

UBNT UF-Wifi Gigabit Passive Optical Network High-Performance OLTs

UBNT UF-LOCO Gigabit Passive Optical Network High-Performance OLTs

High Performance GPON

Configuring a fiber network just became as easy as setting up a smartphone. Say goodbye to command lines, manuals, and paid support licenses. Introducing U Fiber from Ubiquiti a fiber solution that anyone can deploy.
U Fiber offers internet and telecom service providers a cost effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gbps downstream and 1.244 Gbps upstream.

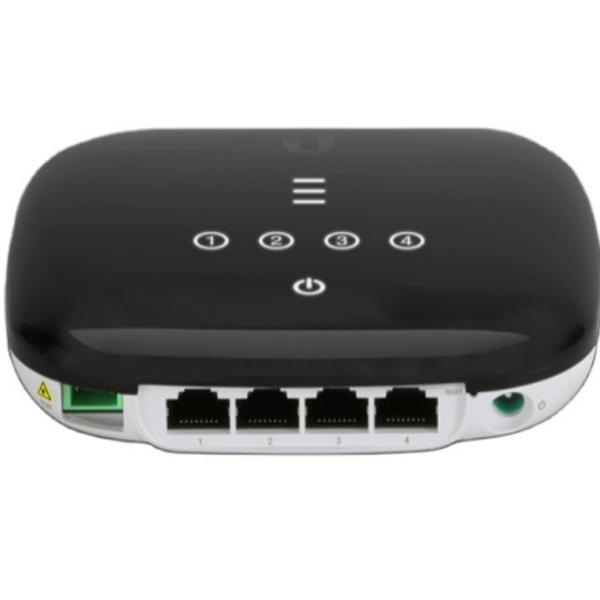

UFiber WiFi U Fiber WiFi is a robust, high performance GPON CPE that offers routing, four LAN ports, and WiFi. It is powered by 24V passive PoE or a 24V, 0.5A power adapter.

(1) GPON WAN Port and

(4) Gigabit Ethernet Ports

802.11n WiFi

7W Max. Power Consumption

Specifications

UF-WIFI
Dimensions	126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25")
Weight	190 g (6.70 oz)
Networking Interfaces	(1) SC/APC, GPON WAN (4) Gigabit RJ45, Ethernet LAN (1) Wi-Fi, 802.11n
Networking Interface Speeds
GPON WAN, ITU G.984	2.4 Gbps Down, 1.2 Gbps Up
LAN	10/100/1000 Mbps
Wi-Fi	300 Mbps
Management Interface	In-Band Ethernet PON
Normal Optical Power Range	TX (Class B+): 1.5 to 5 dBm RX: -28 to -8 dBm
Power Method	DC Jack, 24VDC 24V Passive PoE (Pins 4, 5+; 7, 8-)
Power Supply	100-240VAC / 50-60 Hz Universal AC/DC 24V / 0.5A
Max. Power Consumption	7W
Supported Voltage Range	20 to 28V
Processor Specs	MIPS, 900 MHz
Memory Information	256 MB DDR
Button	(1) Reset
Operating Temperature	-10 to 45° C (14 to 113° F)
Operating Humidity	10 to 90% Noncondensing
Certifications	CE, FCC, IC
