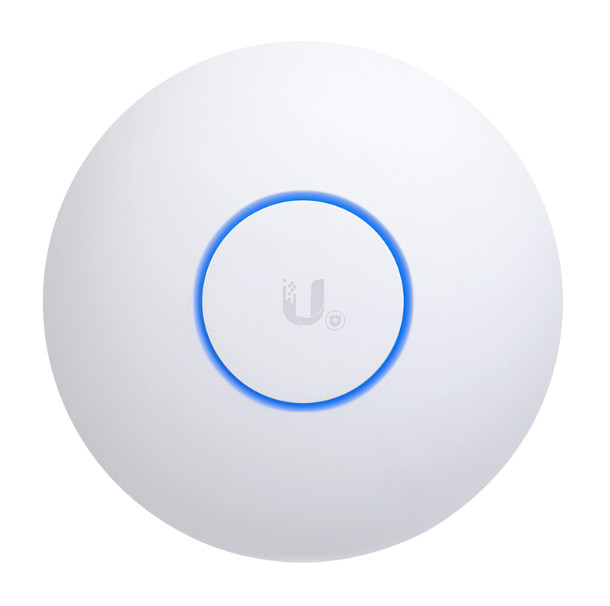

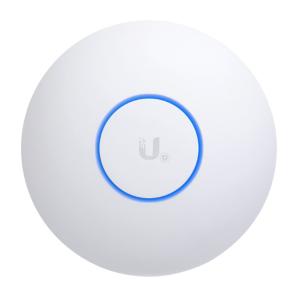

UBNT UAP-AC-SHD Poe Access Point Dual Frequency 4x4MIMO

Brand Name : UBNT

Model Number : UAP-AC-SHD

Place of Origin : Guangdong, China

MOQ : Negotiable

Price : Negotiable

Voltage Range : 44 to 57VDC

Concurrent Clients : 500+

Power Method : 802.3at PoE+

VLAN : 802.1Q

Networking Interface : 10/100/1000 Ethernet Ports

PWi-Fi Standards : 802.11 a/b/g/n/r/k/v/ac/ac-wave2

BSSID : Up to 8 per Radio

Power Consumption : 17W

Warranty : 1 Year

Contact Now

UBNT UAP-AC-SHD Enterprise-class wireless AP ceiling dual-frequency 4x4MIMO multi-user WiFi coverage

UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi HD AP has a refined industrial design and can be easily installed using the included mounting hardware.

Easily accessible through any standard web browser and the UniFi app (iOS or Android™), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.

Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

UAP-AC-SHD

Dimensions

220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89")

Weight

700 g (1.54 lb)
830 g (1.83 lb) with mounting bracket

Network interface

(2) 10/100/1000 Ethernet

Buttons

Reset

Power method

802.3at PoE+

Supported voltage range

44 to 57 VDC

Power

UniFi Switch (PoE)

Energy saving

Supported

Maximum energy consumption

20 W

Radio

2.4 GHz, 5 GHz, Security

Maximum TX Power

6-25 dBm

Antennas

2.4 GHz: (2) Dual-Port, dual polarization, 6 dBi each
5 GHz: (2) Dual-Port, dual polarization, 6 dBi each

Wi-Fi standards

802.11 a/b/g/n/ac/ac-wave2

BSSID

Up to 8 on the radio

Assembly

On the wall / ceiling

Ambient temperature during operation

-10 to 70 ° C (14 to 158 ° F)

Certificates

CE, FCC, IC

Advanced traffic management

VLAN

802.1Q

Advanced QoS

Bandwidth restrictions for each user

Support for guest isolation

Yes

WMM

Voice, Video, Best Effort and Background

Concurrent customers

1500

Supported data rates (Mbps)

Standard

Data transmission speed

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

802.11ac

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)

802.11b

1, 2, 5.5, 11 Mbps

802.11g


6, 9, 12, 18, 24, 36, 48, 54 Mbps
